Description

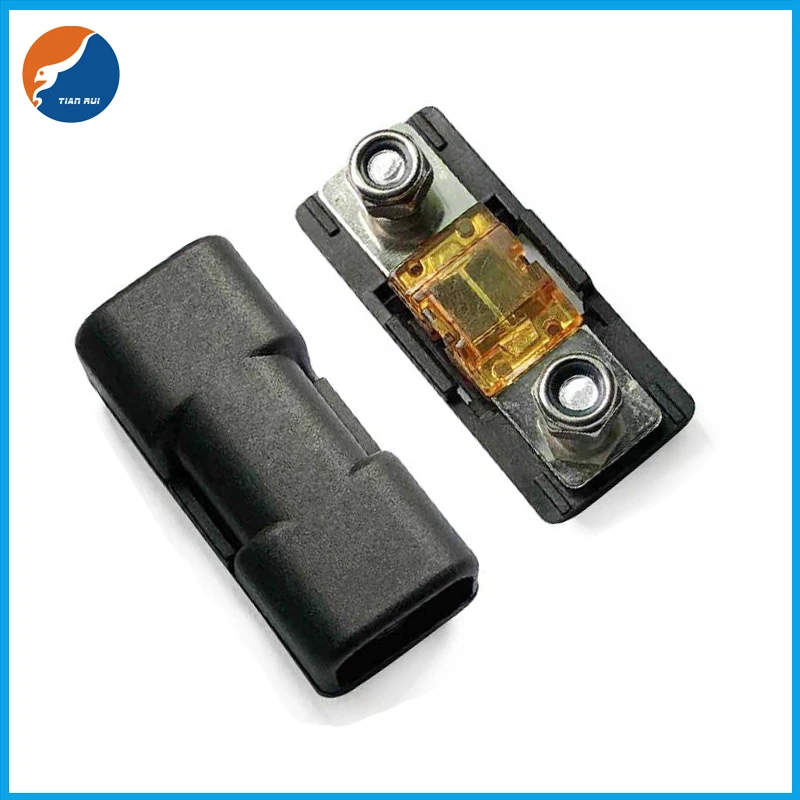

The MIDI 498-IL Series 32V In-Line Fuse Holder can be installed directly in line with the cables to provide high-amperage main or branch circuit protection in harsh or hazardous environments. Because there’s no need to mount the fuse holder, it saves both time and space.
With a curved cover that helps prevent tube splitting, the MIDI 498-IL Series fuse holder is specifically designed for use with heat shrink tubing (sold separately) in applications that need added splash protection.
This high-amp automotive fuse holder features a U L94V-0 rated glass-filled nylon base and cover and accepts M5 MIDI bolt-down fuses rated up to 200 amps.
Specification
| 1.Material | |
| A Contact: Nut: | Steel 304 |
| Stud: | Carbon Steel Zn plated |
| B body: | PA 94-V0 |
| C cover; | PA 94-V0 |
| 2. Removed burrs and sharp edge. | |
| 3. Fuse spec | For ANF,ANG,ANS fuse. |
| 4. Suitable rated current | For ANF,ANG,ANS fuse. |
| 5. Compliant | RoHS |
| 6. Mounting torque | 4.5Nm |
Features and Benefits
• Compatible with M5 MIDI bolt-down fuses rated up to 200 amps (sold separately)
• Installs directly in line with cables, which eliminates the need to mount the fuse holder
• Curved cover helps prevent tube splitting when using heat shrink tubing (sold separately) to achieve added splash resistance
• Zinc-plated steel M5 bolts and M5 nylock nuts offer long-term corrosion resistance
• Available as a complete fuse holder assembly and as component parts to meet various installation requirements
