M8 Hole Marine Rated Battery Fuse , 58V 2000A SBT Slow Blow Fuse

  • 1
  • 2
  • 3

Brand Name : REOMAX

Model Number : MRBF

Place of Origin : China

MOQ : 100

Price : USD $1~$1.5 per piece

Payment Terms : T/T

Supply Ability : 5K pieces per day

Delivery Time : 10 work days

Packaging Details : 100pcs per bagMRBF Terminal Fuse 30A 40A 50A 60A 80A 100A 125A 150A 175A 200A 250A 300A Battery Fuse

Item Name : SBT Fuse Slow Blow Battery Fuse

Part No. : MRBF

Stud Size : 5/16" (M8)

Body Size : 20x23.5x11.8mm

Mounting Type : Bolt down

Interrupting Rating : 10,000A @ 14Vdc / 5,000A @ 32Vdc / 2,000A @ 58Vdc

Body material : Ceramic

Cover material : UL-rated 94V0 Thermoplastic

Voltage Rating : dc 58V

Current Ratin0.1A~20Ag : 100A

RoHS Compliant : Yes

Halogen free : Yes

MOQ : 100pcs

Torque Rating : 12 N•m (106 in-lbs)

Contact Now

SBT Fuse M8 Hole 58V 2000A Slow Blow Battery Fuse

MRBF Terminal Battery Fuses.pdf




Specification

Marine Rated Battery Fuse/SBT Slow Blow Fuse

Main Fuse for mounting with battery clamp on the battery pole.
Voltage rating 58VDC, Current rating 50A - 500A.
With transparent cover material for visual inspection of melting element.

Amperage Rating: 30A 40A 50A 75A 100A 125A 150A 175A 200A 250A 300A 400A 500A

Maximum Torque Rating: 12 N•m (106 in-lbs)

Specification Parameters
Interrupting Rating 10000A @ 14Vdc / 5000A @ 32Vdc / 2000A @ 58Vdc
Voltage Rating 58VDC
Stud 5/16" (M8)
Standards ISO 8820-6, DIN 72581-5, UL 248 Special Purpose Fuses
Housing Material PES
Body Material Ceramic
Mounting Torque 12 N•m (106 in-lbs)

Electrical Performance

TESTING CURRENT BLOW TIME LIMIT
100% > 100Hr
135% < 3600s
200% 0.2s - 60s
300% 0.05s - 1.5s
600% <0.2s

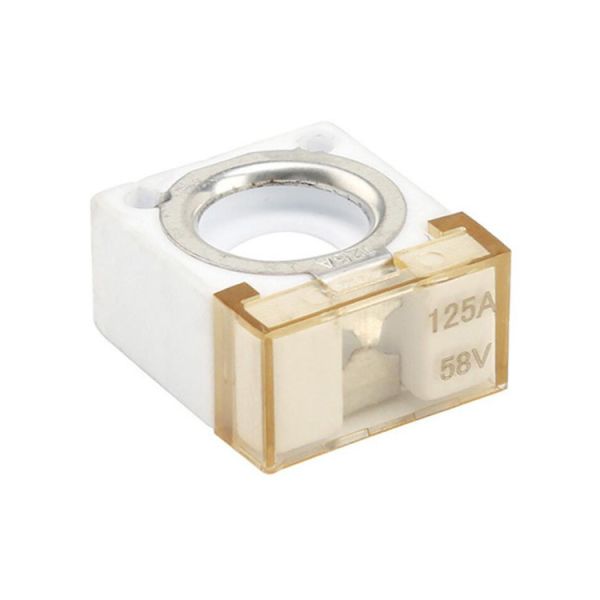

Pictures of SBT Fuse M8 Hole 58V 2000A Slow Blow Battery Fuse

M8 Hole Marine Rated Battery Fuse , 58V 2000A SBT Slow Blow Fuse

M8 Hole Marine Rated Battery Fuse , 58V 2000A SBT Slow Blow Fuse

M8 Hole Marine Rated Battery Fuse , 58V 2000A SBT Slow Blow Fuse

Drawing of SBT Fuse M8 Hole 58V 2000A Slow Blow Battery Fuse

M8 Hole Marine Rated Battery Fuse , 58V 2000A SBT Slow Blow Fuse

Standard Package

100pcs per bag, 5000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

  • Company warehouse
  • M8 Hole Marine Rated Battery Fuse , 58V 2000A SBT Slow Blow Fuse
FAQ

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.


If you have another question, pls feel free to contact us for more SBT Fuse M8 Hole 58V 2000A Slow Blow Battery Fuses


Email: admin(at)reomax-fuse.com.cn
Mobile: +86-13712305350
Skype: tianruifuse101
Whatsapp: +86-13712305350
Wechat: yuanjianheng003
