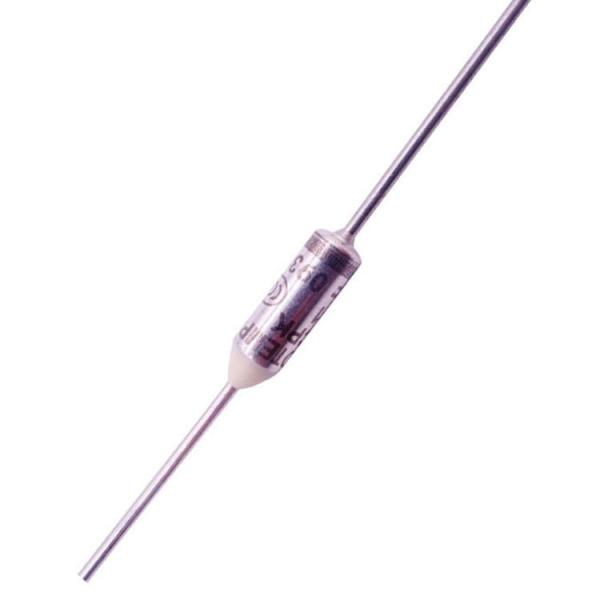

G5A01 Thermal Link G5 Series Microtemp 20A 250V Cutoff Fuse

Name: G5A01 Thermal Link G5 Series Microtemp 20A 250V Cutoff Fuse
Brand: Microtemp
Price: 1 USD

Quality G5A01 Thermal Link G5 Series Microtemp 20A 250V Cutoff Fuse for sale

Brand Name : Microtemp

Model Number : G5A01

Certification : UL VDE PSE CCC

Place of Origin : China

MOQ : 5000

Price : USD $0.1~$0.15 per piece

Payment Terms : T/T

Supply Ability : 50K pieces per month

Delivery Time : 15 days

Packaging Details : 500pcs per bag, 20000pcs per carton

Item Name : thermal fuse, thermal cutoff, thermal link

Part No. : G5A01

Voltage Rating : 250V

Current Rating : 20A

Tf : 66~240 Degree

Mounting Type : axial leaded

Blow Type : One shot operation

Case Type : Metal

UL Listed : Yes

RoHS Compliant : Yes

Halogen free : Yes

MPQ : 500pcs

MOQ : 5000pcs

Contact Now

G5A01 thermal link G5 Series Microtemp TOD 20A 250V Cutoff Fuse

MICROTEMP Thermal Cutoffs are designed for thermal protection as electrical cut off

Product Description

Item	thermal fuse, thermal cutoff, thermal link
Body Tyle	Metal
Lead Dia	1mm
Lead Length	see table 3
Current Rating	20A@250VAC
Mounting Type	axial leaded
Body Dia	4mm
Body Length	14.7mm
Certifications	UL VDE

Specification

G5A01	Th ºC	Tm ºC
G5A01072C	57	410
G5A01073C	58	410
G5A01077C	62	410
G5A01084C	69	220
G5A01091C	76	430
G5A01093C	78	410
G5A01098C	83	410
G5A01104C	89	225
G5A01110C	95	225
G5A01117C	102	410
G5A01121C	106	410
G5A01125C	110	235
G5A01128C	113	235
G5A01134C	119	410
G5A01141C	126	350
G5A01144C	129	410
G5A01152C	137	410
G5A01158C	143	410
G5A01167C	152	410
G5A01172C	157	410
G5A01184C	169	410
G5A01190C	175	410
G5A01192C	177	350
G5A01205C	190	410
G5A01216C	200	410
G5A01229C	200	410
G5A01240C	200	410
G5A01257C	-	-

Dimension

G5A01 Thermal Link G5 Series Microtemp 20A 250V Cutoff Fuse

Leads length can be customized

Electrical Ratings

Series	G4		G5
Agency	Resistive	Inductive	Resistive
UL/CSA	21A/240VAC	8A/250VAC	20A/250VAC
	10A/250VAC	14A/120VAC	25A/120VAC
	15A/120AC		21A/240VAC
	5A/24VDC		20A/277VAC
VDE	10A/250VAC	8A/250VAC	20A/250VAC
CCC	5A/24VDC	8A/250VAC	20A/250VAC
CCC	10A/250VAC	8A/250VAC	20A/250VAC
PSE JET	10A/250VAC		15A/250VAC

Standard Package

500pcs per bag, 20000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Test Equipment

Company warehouse
Q1: What are your main products?

A1: fuses, fuse holders, thermal switches, circuit breakers

Q2: How long is your delivery time?

A2: It depends on your qty. Most of the items are available within 15 days.

Q3: How can I get a sample? Is that for free?

A3: You are always welcome for requesting samples. Most of the samples are free of charge. But you will have to bear the express cost.

Q4:How can I get a more competitive price?

A4:Usually our quotation is made based on the order qty. You need to increase your qty if you demands lower prices.We can't sacriface the quality for lower pricing and profit.

Q5:How do you control your quality system?

A5: We have enough number of QC staff at every stage from adopting materials, productionion, packing to loading, They are on for 7/24.

G5A01 thermal link G5 TCO Series Microtemp TOD 20A 250V Cutoff Fuse

Q6:How long is your warranty period?

A6: Normally you will have 1-year warranty for most of our products.

G5A01 thermal link G5 Series Microtemp TOD 20A 250V Cutoff Fuse
